From the Component Card

Here you can only trigger a queue reposition using the HL7 Map component, this requires the selection of a linked upstream component queue to reposition.

STEP 1: Choose a downstream component you want to reposition and open its component card

STEP 2: Reposition the queue

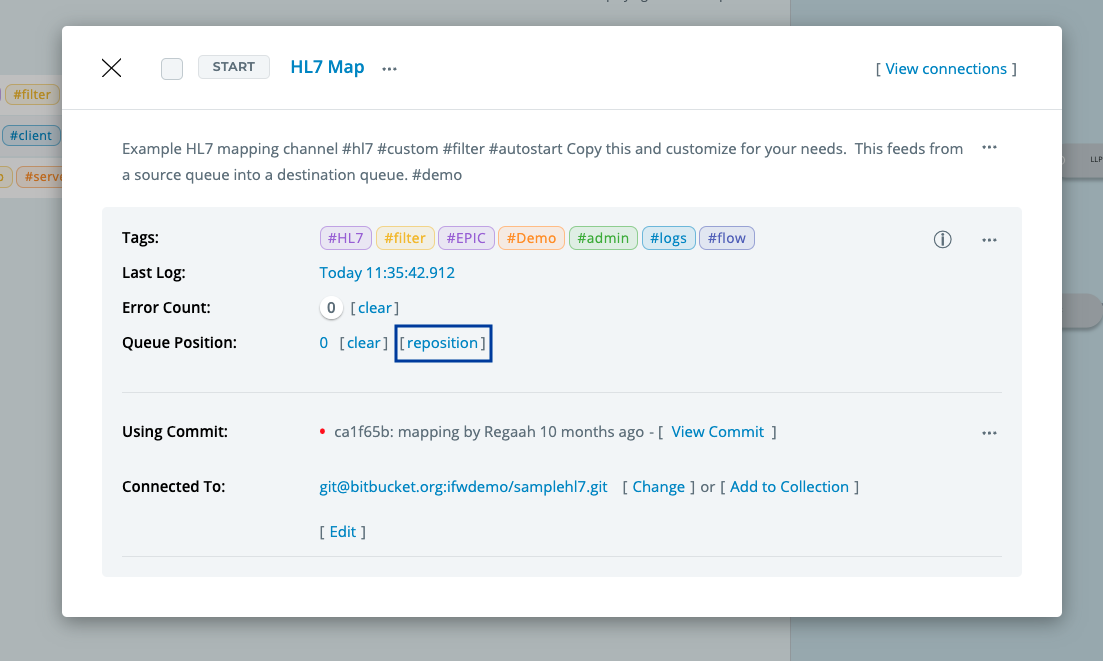

  1. In the component card's Queue Position: click reposition.

  2. If the component has multiple upstream connections, use the Select source queue dropdown to filter and view messages from specific sources.

  3. Change the date to a previous date and time:

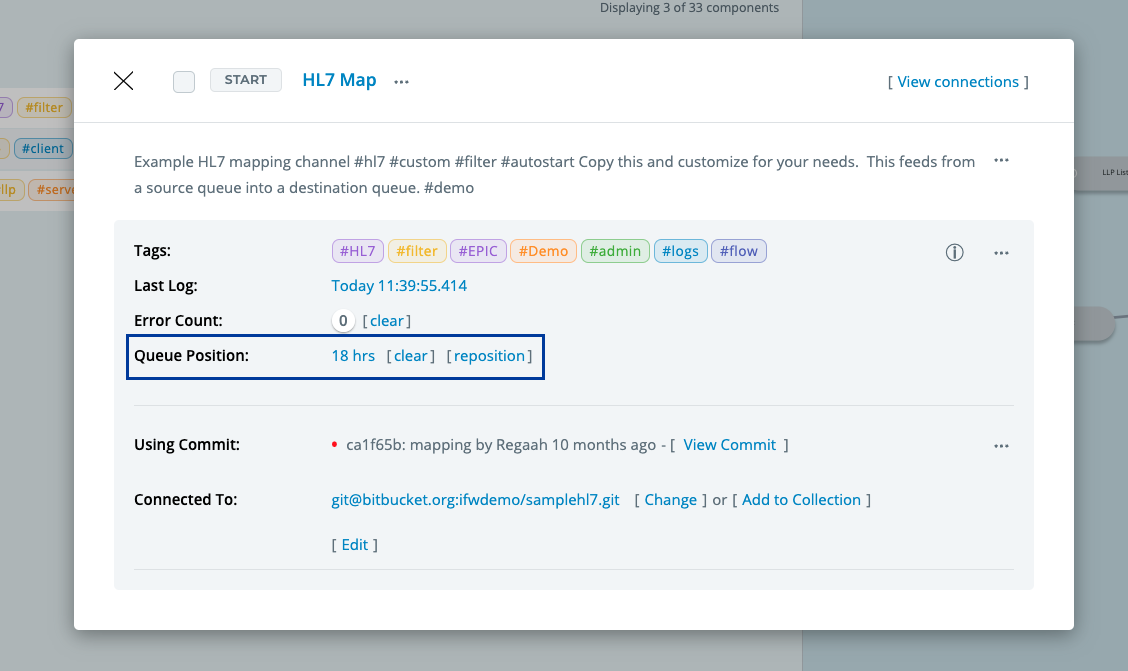

  1. After clicking reposition, the dialog will close itself and you will see the updated queue position in the component card:

  1. Close the card.

  2. In the dashboard, there should now be a large number of days or hours of logs in the QUE column.

STEP 3: Start the HL7 Map Component to process the messages from the repositioned queue

  1. Click on the Last Log timestamp in the component card, you should be taken to a log message showing that a new queue position was accepted:

  1. Go back to the dashboard and run the HL7 Map component. The component will begin to process messages from its queue and the QUE value will start to decrease:
