From the Log Details

Here you can only trigger a queue reposition using the upstream component - requires selection of a linked downstream component queue to reposition.

STEP 1: Go to Logs, select an upstream component and go to a log message from the past

  1. Navigate to the Logs and choose a Component. The component chosen must have a linked downstream component.

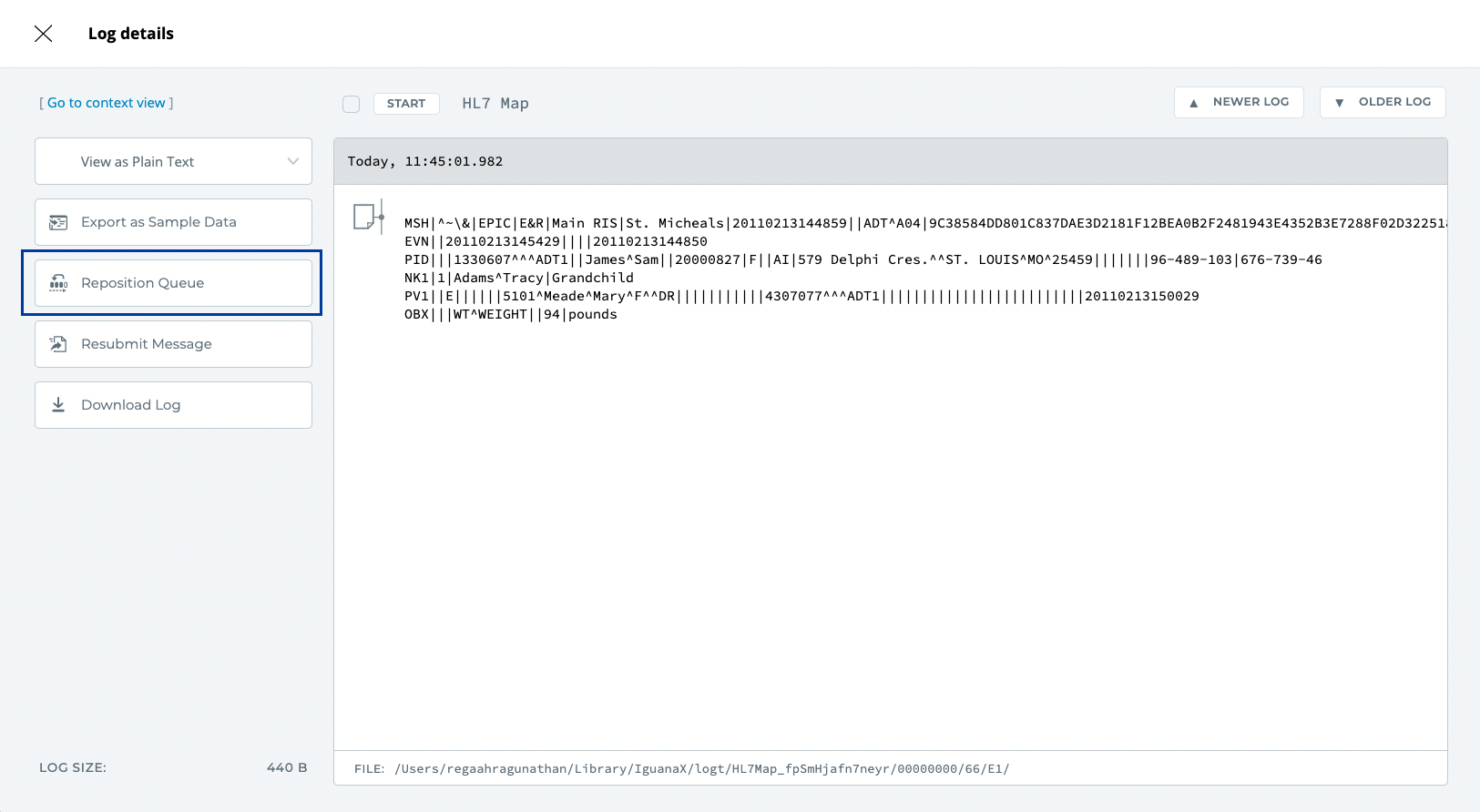

  2. Double click on a log message from the past to pull up the Log details page. It must be a log message type.

  3. Click Reposition Queue from the menu.

STEP 2: Choose a downstream component to reposition it's queue at the selected log entry

  1. Choose the linked LLP Client component (it will be auto selected).

  2. Click Reposition.

STEP 3: Start the HL7 Map Component to process the messages from the repositioned queue

  1. Click on the Last Log timestamp in the component card, you will be directed to a log message showing that a new queue position was accepted:

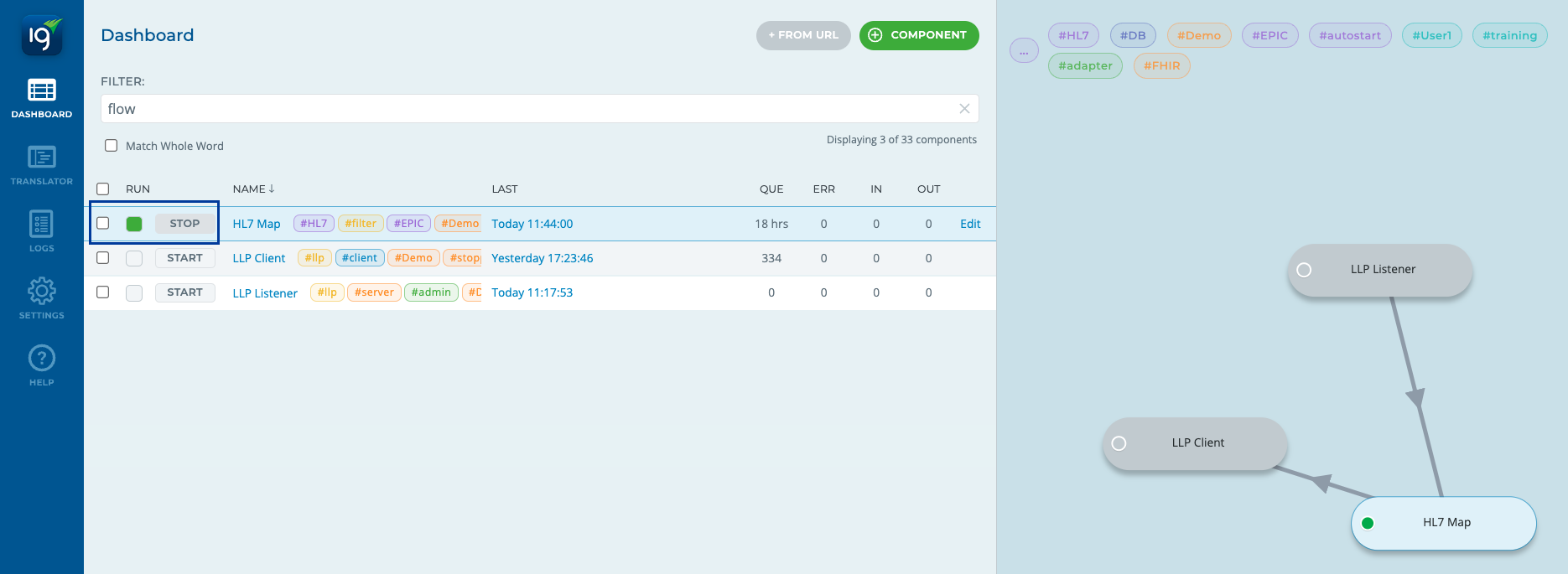

  1. Navigate back to the dashboard and start the HL7 Map component. The component will begin to process messages from its queue and the QUE value will start to decrease:
